SPECIFICATIONS

Electrical

5V @ 3A (based on standard cable configuration)

Environmental

Operating Temperature: -20°C to 85°C

Material

ABS (Black)

(Custom Colors Available in Volume)

Physical

Dimensions: 5” L x 5” W x 1.81” H

Retractable Cable Length: Up to 15 Ft.*

Cable Type: Customer Specified

Connectors: Customer Specified

Mounting: Slide Bracket

Optional Internal Ratchet System

Certification

Custom/Specialty Certifications, Including ROHS Compliance, Upon Request

* Retractable lengths depend on cable construction (e.g. number of conductors and insulation type)

DOWNLOAD DATA SHEET >>

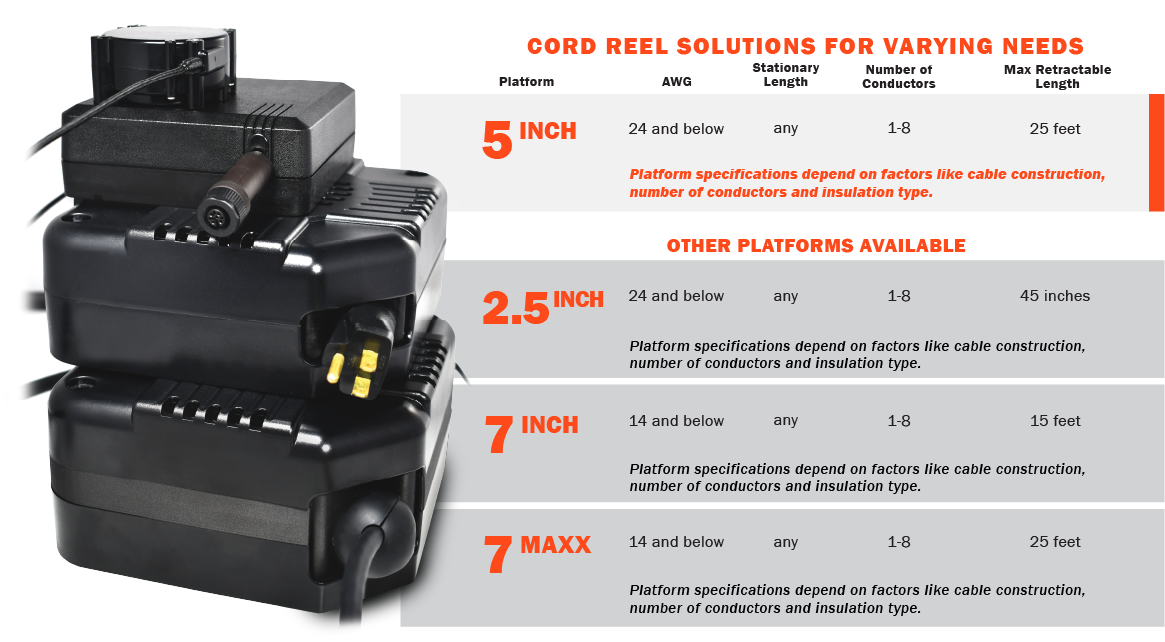

5 INCH

ALL-WEATHER CORD REEL PLATFORM

The 5 INCH platform is the original Konnectronix cord reel platform that originated in 1989. This platform continues to stand the test of time delivering new low voltage power, data and signal solutions for a wide range of applications in industries as diverse as

automation, telecommunications, and even industrial. Designed to accommodate various cable constructions, this platform allows for up to 25 feet of retractable cable length.

2.5 INCH

The 2.5 INCH is a compact and versatile cord reel for low voltage power, data and signal. This platform allows up to 45 inches of retractable cable length, depending on the connector size and cable construction.

LEARN MORE >>

TEARDROP

The Teardrop cord reel is perfect for data and signal applications. It allows up to 15 feet of

retractable cable, depending on conductor size and cable construction.

LEARN MORE >>

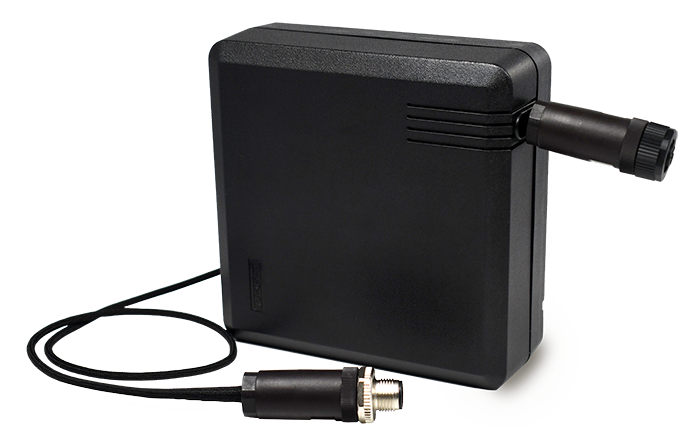

5 INCH

The 5 INCH cord reel platform is ideal for automation, low voltage power, data, signal, telecommunication, and industrial and laboratory applications. Depending on conductor size and cable construction, this product allows up to 25 feet of retractable cable length.

LEARN MORE >>

7 INCH & 7 MAXX

The 7 INCH and 7 MAXX cord reel platforms feature Konnectronix’s patented brushless cord reel technology and strain relief design which provide for uninterrupted signal transmission and ensure continued reliability, no matter the weather.
